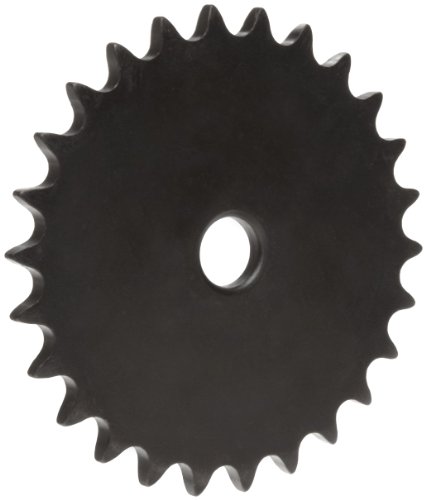

The Martin type A sprocket is suitable for use with series 41 chain with 1/2” pitch for driver or driven sprocket applications. This sprocket has a narrow profile and no hub extension, and is easily adaptable for bushings, bearings, and sleeves. Varying numbers of teeth, outside diameters, and stock bore sizes offer application flexibility. Made from high carbon steel, it has high strength and durability.
The options for this class of sprocket are: number of teeth from 15 to 112; outside diameter from 2.650” to 15.84”; stock bore size from 5/8” to 15/16”; and approximate weight from 0.28 lbs to 20.00 lbs. The tooth width is 0.227” nominal. The maximum bore size will accommodate standard keyseat and setscrew over keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at angle to keyseat. All Martin sprockets meet or exceed ANSI standards.
A sprocket is a wheel with teeth around the perimeter that meshes with a chain, track, or other perforated or indented material. Unlike gears that mesh with another gear, sprockets mesh with a chain, which then interacts with another sprocket. Gears can be used to transmit power around a corner, based on how they fit together. Sprockets with chains only work in straight lines. Some common benefits of chain-drive systems include minimal slippage, a fixed ratio between rotating shafts, and versatility with many different chain attachments and sprocket material selections. An example of a power transmission system is a standard bicycle, which has a sprocket and a chain to deliver power from the rider’s legs to the wheels making the bike move.
Martin Sprocket & Gear manufactures power transmission and conveying products. The company was founded in 1951 and is headquartered in Arlington, TX. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
The Martin type A sprocket is suitable for use with series 41 chain with 1/2” pitch for driver or driven sprocket applications. This sprocket has a narrow profile and no hub extension, and is easily adaptable for bushings, bearings, and sleeves. Varying numbers of teeth, outside diameters, and stock bore sizes offer application flexibility. Made from high carbon steel, it has high strength and durability.
The options for this class of sprocket are: number of teeth from 15 to 112; outside diameter from 2.650” to 15.84”; stock bore size from 5/8” to 15/16”; and approximate weight from 0.28 lbs to 20.00 lbs. The tooth width is 0.227” nominal. The maximum bore size will accommodate standard keyseat and setscrew over keyseat. Slightly larger bores are possible with no keyseat, shallow keyseat, or setscrew at angle to keyseat. All Martin sprockets meet or exceed ANSI standards.
A sprocket is a wheel with teeth around the perimeter that meshes with a chain, track, or other perforated or indented material. Unlike gears that mesh with another gear, sprockets mesh with a chain, which then interacts with another sprocket. Gears can be used to transmit power around a corner, based on how they fit together. Sprockets with chains only work in straight lines. Some common benefits of chain-drive systems include minimal slippage, a fixed ratio between rotating shafts, and versatility with many different chain attachments and sprocket material selections. An example of a power transmission system is a standard bicycle, which has a sprocket and a chain to deliver power from the rider’s legs to the wheels making the bike move.
Martin Sprocket & Gear manufactures power transmission and conveying products. The company was founded in 1951 and is headquartered in Arlington, TX. Martin provides tools that meet American National Standards Institute (ANSI), National Aerospace Standard (NAS), and Deutsches Institut für Normung (DIN) standards.
- For use with series 41 chain, 1/2" pitch for driver or driven sprocket applications
- Type A sprocket offers flexibility in mounting arrangements
- Shaft diameter size from 5/8" to 15/16" for a variety of applications
- Can be used with large-diameter shafts, and drilled for mounting or welded directly to other apparatuses
- High carbon steel for strength and durability
